High Voltage GDHY 700VAC 0.33UF Conduction Cooled Capacitor

Name: High Voltage GDHY 700VAC 033UF Conduction Cooled Capacitor
Brand: GDHY
Price: 107 USD

Brand Name : GDHY

Model Number : C41701334KTC2151-01

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA.

MOQ : 20 PCS

Price : 107 USD /PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 PCS/ MONTH

Delivery Time : 14 DAYS

Packaging Details : CARTON PACKING WITH FOAM BOX AND ANTI-CORRSION PROTECT.

BRAND NAME : GDHY

MODEL NUMBER : C41701334KTC2151-01

CORE : IMPORTED COPPER FOIL

MATERIAL : BRONZE

INSTALLATION : THROUGH HOLE

CAPACITANCE VALUE : 0.33UF

RATED POWER : 150KVAR

RATED VOLTAGE : 700VAC

OPERATION TEMPERATURE : -40℃～85℃

CERTIFICATION : ISO,SGS

CAPACITY TOLERANCE : ±10%

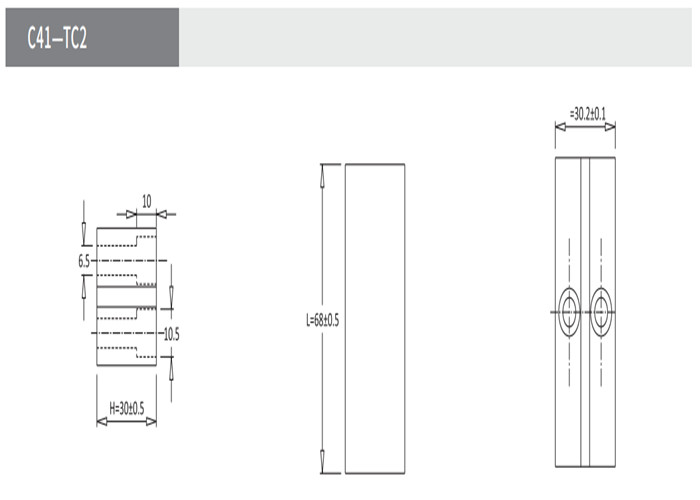

DIMENSION : 68*30*30.2MM

LIFE EXPECTANCY : 100000h at UN and 70℃,30000h at Urms

LEAD EKECTRODE : COPPER

ADVANTAGE : KEEP LOW DF AND LONG LIFE EXPECTANCY

SHAPE : SQAURE

PRINTING METHOD : LASER MARKING

QUALITY CERTIFICATE : ISO 9001

COMPANY HISTORY : SINCE 1998

FREQUENCY : 148-200KHZ

CURRENT : 250A

APPLICATION : Induction heating, heat treatment, plasma applications, resonant circuits, medical imaging, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters,etc.

Contact Now

C41-TC2 0.33UF/700V/150KVAR ALCON FP-4-150-SM/SP CELEM CSM150 Induction Heater Water Capacitor Induction Cooled Capacitor

Technical Parameter

Reference Standards	GB/T 3984-2004 IEC 60110.1
Operating Temperature Range	-40℃～85℃
Capacity Range	0.2-2.4UF
Power Range	150-300 kVar
Rated Voltage	400-1100VAC
Capacity Tolerance	±10%
Test Voltage between Terminals	1.5UNAC 10s 2~3.5UNDC 10s at 25℃±5℃
Dissipation Factor	tgδ≤5×10-4 at 25℃±5℃,1kHz
Insulation Resistance	R•C≥3000s,at 100VDC,25℃±5℃,60s
Life Expectancy	100000h at UN and 70℃,30000h at Urms

Specification download: C41-TC2.pdf

Application

Induction heating, heat treatment, plasma applications, resonant circuits, medical imaging, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters,etc.

Feature

● Conduction water-cooled

● Polypropylene dielectric

● Low dissipation factor(tgδ), low ESL, low ESR

● High voltage, high frequency and high dV/dt,

● Can bear large current, excellent heat dissipation
