Low ESL ESR 6.3UF CELEM C500TW Pp Film Capacitor

Name: Low ESL ESR 63UF CELEM C500TW Pp Film Capacitor
Brand: GDHY
Price: 112 USD

Brand Name : GDHY

Model Number : C41701635KTE1501-01

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA.

MOQ : 20PCS

Price : 112 USD/ PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 PCS/MONTH

Delivery Time : 14 DAYS

Packaging Details : CARTON WITH FOAM BOX AND ANTI-CORRSION PROTECT.

BRAND : GDHY

PLACE OF ORIGIN : GUANGZHOU, CHINA

SUPPLIER TYPE : ORIGINAL MANUFACTURER

TYPE : WATER COOLED CAPACITOR

CHARACTERISTICS : WATER COOLED, CONDUCTION COOLED, EXCELLENT HEAT DISSPATION.

CORE : IMPORTED COPPER FOIL

TERMINAL : COPPER

CERTIFICATION : SGS, ISO

OPERATION TEMP : -40℃～85℃

CAPACITANCE : 6.3UF

TOLERANCE : ±10%

RATED POWER : 500KVAR

RATED VOLTAGE : 700VAC

DIMENSION : 88*71.5*60

LIFE EXPECTANCY : 100000h at UN and 70℃,30000h at Urms

ADVANTAGE : KEEP LOW DF AND LONG LIFE EXPECTANCY

PRINTING METHOD : LASER MARKING

APPLICATION : NEW ENERGY FIELDS; TRANSPORTATION FACILITIES; HIGH POWER INDUSTRIAL FACILITIES: QUALITY CONTROL: IQC, SPC, INSPECTION, WAREHOUSING

EXPERIENCE : OVER 22 YEARS

INSTALLATION : THROUGH HOLE

Contact Now

Low ESL ESR 6.3UF CELEM C500TW Pp Film Capacitor C41-TE1 6.3UF 700VAC 10% ALCON FP 12-500H CELEM C500TW POLYPROPYLENE FILM CAPACITOR DIELECTRIC LOW ESR ESL PLASMA

Technical Parameter

Reference Standards	GB/T 3984-2004 IEC 60110.1
Operating Temperature Range	-40℃～85℃
Capacity Range	6.3μF
Power Range	500kVar
Rated Voltage	700VAC
Capacity Tolerance	±10%
Test Voltage between Terminals	1.5UNAC 10s 2~3.5UNDC 10s at 25℃±5℃
Dissipation Factor	tgδ≤5×10-4 at 25℃±5℃,1kHz
Insulation Resistance	R•C≥3000s,at 100VDC,25℃±5℃,60s
Life Expectancy	100000h at UN and 70℃,30000h at Urms

Application

Induction heating, heat treatment, plasma applications, resonant circuits, medical imaging, wireless power transfer, EV (electric vehicle) charging, IPT, high frequency inverters,etc.

Features

● Conduction water-cooled

● Polypropylene dielectric

● Low dissipation factor(tgδ), low ESL, low ESR

● High voltage, high frequency and high dV/dt,

● Can bear large current, excellent heat dissipation

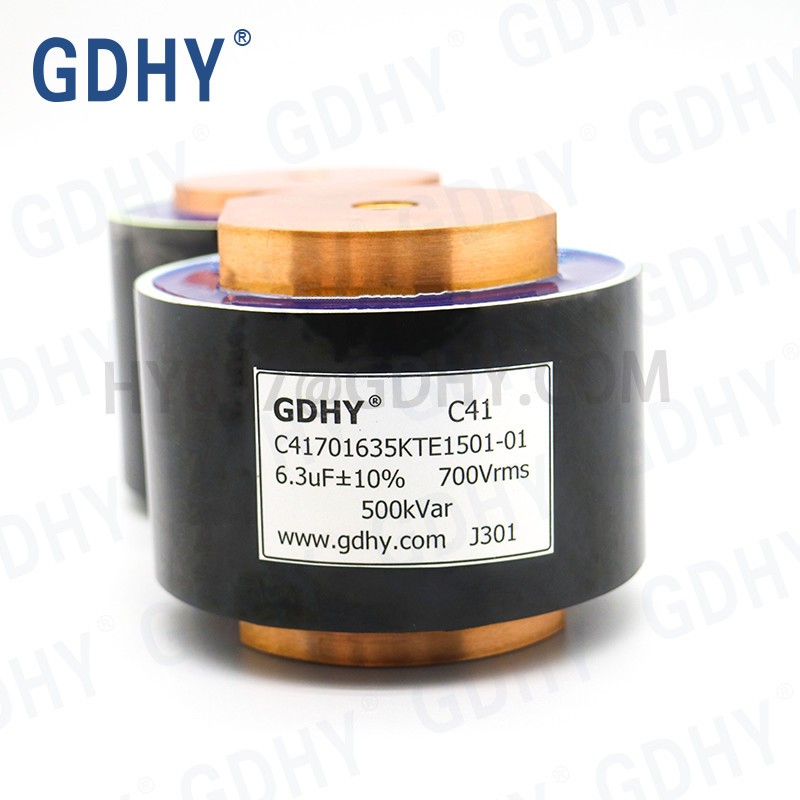

Product Picture
