474J400V 0.47UF MPP CBB22 Polypropylene Film Capacitor Sound Equipment Lighting Industry

Name: 474J400V 047UF MPP CBB22 Polypropylene Film Capacitor Sound Equipment Lighting Industry
Brand: GDHY
Price: 1 USD

China 474J400V 0.47UF MPP CBB22 Polypropylene Film Capacitor Sound Equipment Lighting Industry wholesale

Brand Name : GDHY

Model Number : CBB22 0.47uf 400V P20

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA

MOQ : 100KPCS

Price : PLEASE CONTACT US FOR MORE DETAILS

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 1KK PCS/MONTH

Delivery Time : 15 WORKING DAYS

Packaging Details : PLASTIC BAG

CAPACITANCE : 0.47uf/470nF (474)

RATED VOLTAGE : 400V

PITCH : 20MM

DIMENSION : 18*8.5*12.5MM

LEAD TYPE : RADIAL LEAD WIRE

LEAD DIA : 0.8MM

STRUCTURE : NON-INDUCTIVE WINDING STRUCTURE

ENCAPSULATION : EPOXY RESIN COATING

Contact Now

474J400V 0.47UF MPP CBB22 Polypropylene Film Capacitor Sound Equipment Lighting Industry MPP CBB22 POLYPROPYLENE FILM CAPACITOR 0.47UF 474J 400V P12 DC PULSE CIRCUIT

Technical Parameter

Reference Standards	GB/T 10190(IEC 60384-16)
Climate Category	40/085/21
Capacity Range	0.47μF/470NF/474
Rated Voltage	400VDC
CAP TOLERANCE	5%(J);10%(K)
Withstand voltage	Vt-t:1.6UN 5S (at20 ±5%)
Dissipation Factor	tgδ≤0.0010 (20℃, 1KHz)
Maximum Pulse Rise Time (dv/dt)	180(V/μS)
Insulation Resistance	C>0.33μF RCN≥30000S (at20℃ 100VDC 1Min)

Specification download: CBB22.pdf

Application

Can be used in Electronic scale, Audio equipment, Audio-visual devices, etc.

Suitable for High frequency, DC, AC, Pulse Circuits, Large current application and the S-correction circuits of the display device.

Feature

● Metallized polypropylene film dielectric

● Non-inductive winding structure

● Excellent flame retardancy

● Small size, better stability

● Good self-healing, longer life

● Resistance to high voltage, small tgδ, low temperature rise

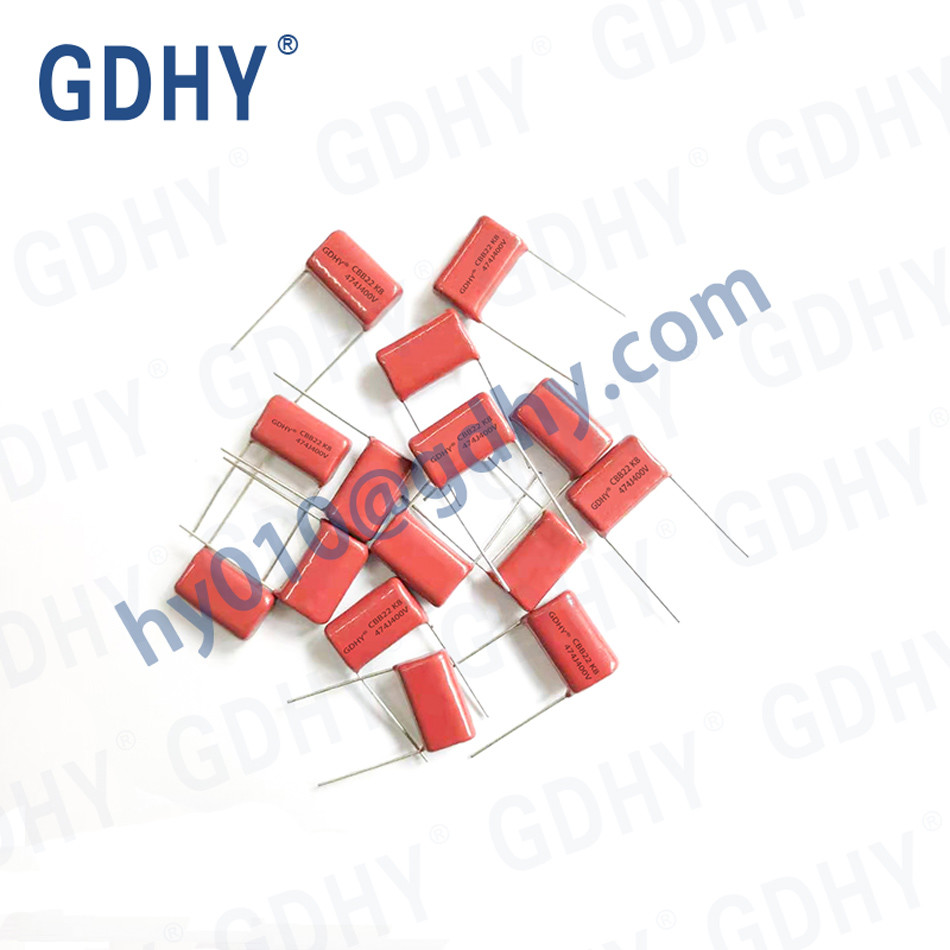

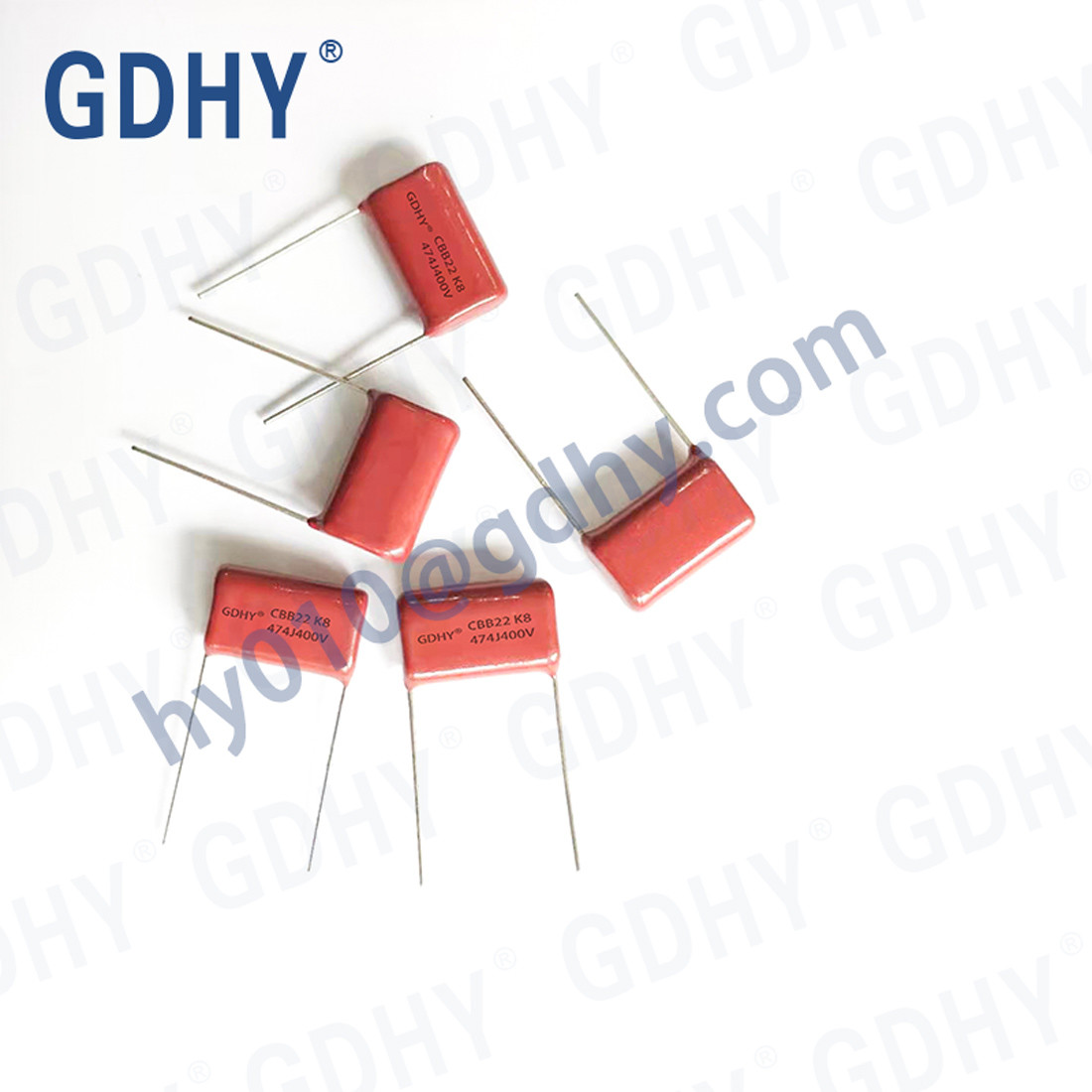

Product Picture
