CBB20 10UF 250V Axial Audio Film Capacitor Metallized polypropylene Film Capacitor

Name: CBB20 10UF 250V Axial Audio Film Capacitor Metallized polypropylene Film Capacitor
Brand: GDHY
Price: 0.8 USD

China CBB20 10UF 250V Axial Audio Film Capacitor Metallized polypropylene Film Capacitor wholesale

Brand Name : GDHY

Model Number : CBB20251106JX10-02

Certification : SGS,ISO

Place of Origin : GUANGZHOU, CHINA

MOQ : 10KPCS

Price : USD 0.8/PCS

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 1KKPCS/MONTH

Delivery Time : 14 DAYS

Packaging Details : CARTON WITH FOAM BOX AND ANIT-CORROSION PROTECT.

BRAND : GDHY

SUPPLIER TYPE : ORIGINAL MANUFACTURER

MODEL NUMBER : CBB20251106JX10-02

SHAPE : AXIAL TIN COPPER WIRE LEADS

OPERATION TEMP : -40℃～85℃ TMAX 105℃

CAPACITANCE : 10UF/106

TOLERANCE : ±5% (J); ±10% (K)

RATED VOLTAGE : 250V

DIMENSION : 26*44MM

CLIMATE CATEGORY : 40/085/21

Contact Now

CBB20 10UF 250V Axial Audio Film Capacitor Metallized polypropylene Film Capacitor CBB20 10UF/250V POLYPROPYLENE FILM CAPACITOR AXIAL AUDIO CAPACITORS AUDIO EQIUPMENT

Technical Parameter

Reference Standards	GB/T 10190(IEC 60384-16)
Climate Category	40/085/21
Operating Temperature Range	-40℃～85℃ Tmax 105℃
Capacity Range	10μF/106
Rated Voltage	250VDC/400VDC/630VDC
Capacity Tolerance	±5%(J)；±10%(K)；±20%(M)；
Withstand voltage	1.6UR (5S)
Dissipation Factor	tgδ≤0.0010 (20℃, 1KHz)
Insulation Resistance	C≤0.33μF R≥100000MΩ(at 20℃ 100VDC 1Min)
Insulation Resistance	C>0.33 μF RCN≥30000S (at 20℃ 100VDC 1Min)

Specification download: CBB20.pdf

Application

● Used in oscillation and filter circuits

● Temperature compensating circuit

● Timing oscillation circuit

● Audio frequency division circuit

Feature

● Metallized polypropylene film dielectric

● Non-inductive winding structure

● Myla tape with flame retardant epoxy resin at both ends

● Resistance to high voltage, small tgδ, low temperature rise

● Good stability, good damp proof, wide capacitance range

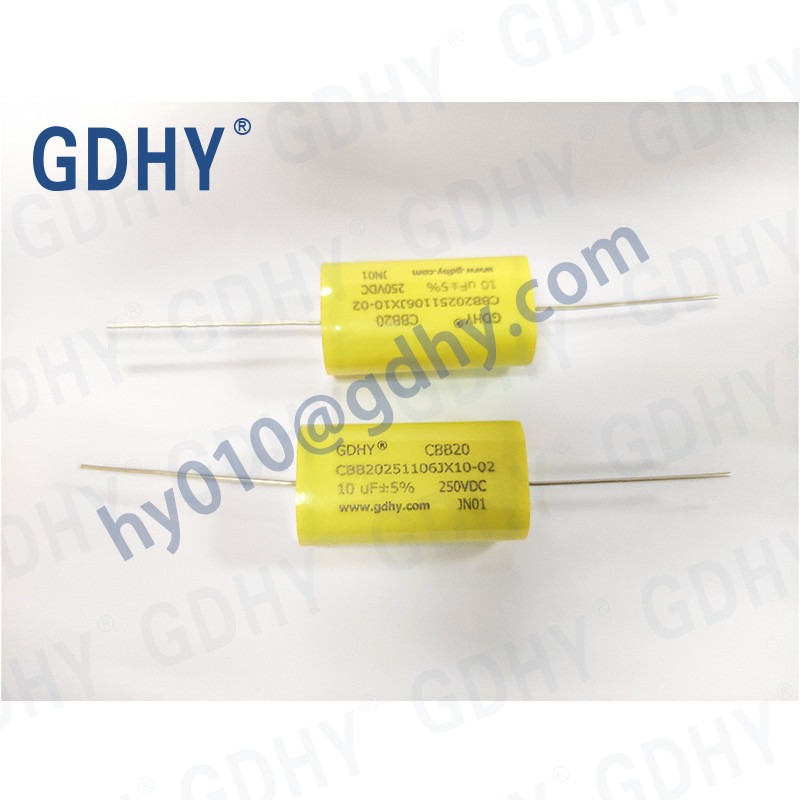

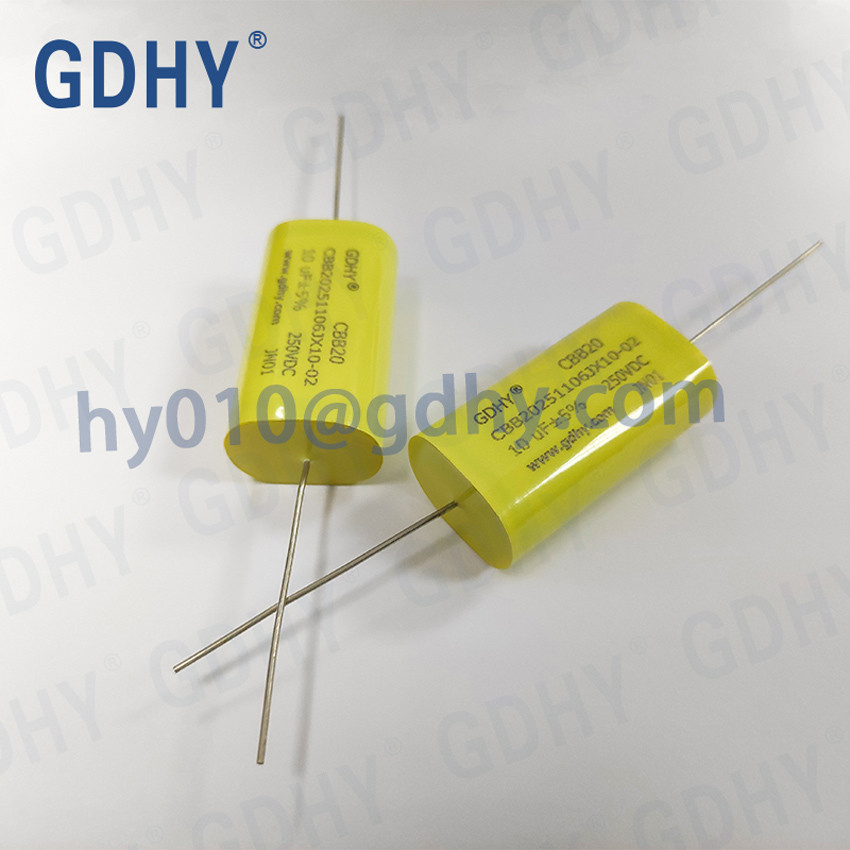

Product Picture
