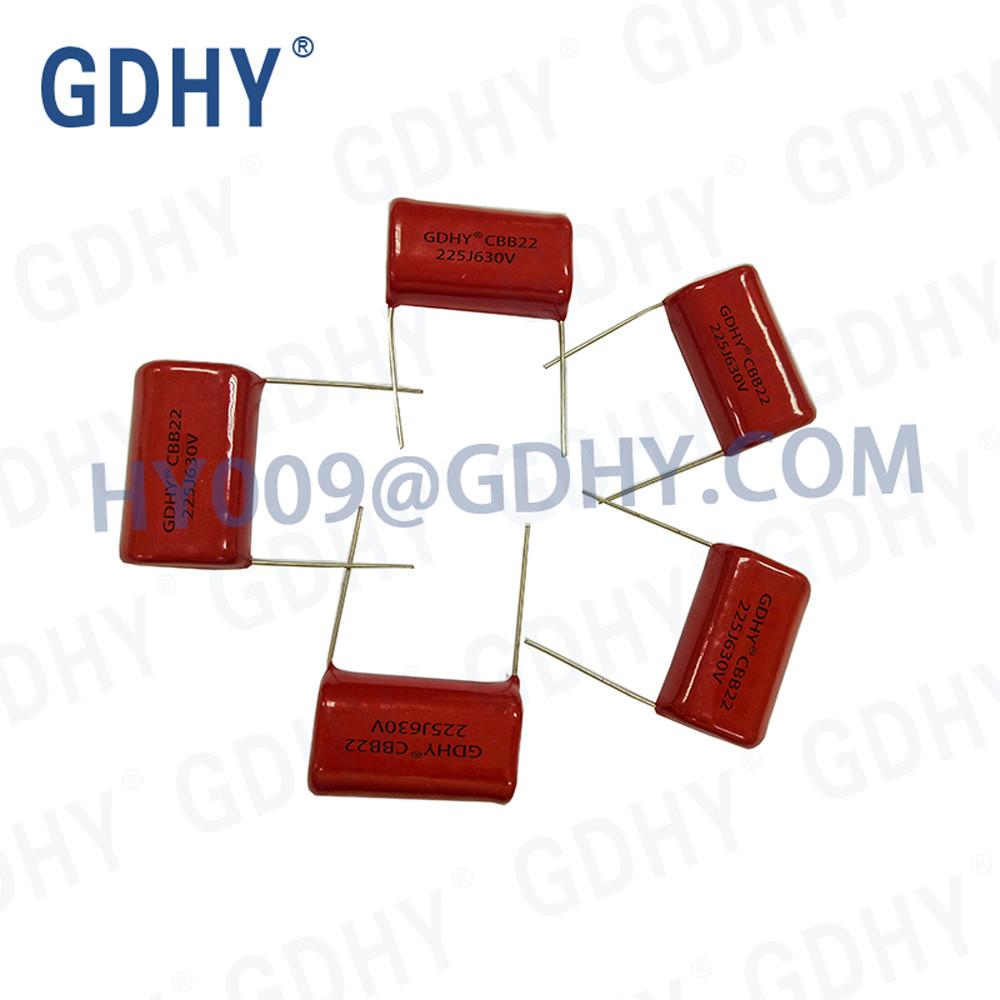

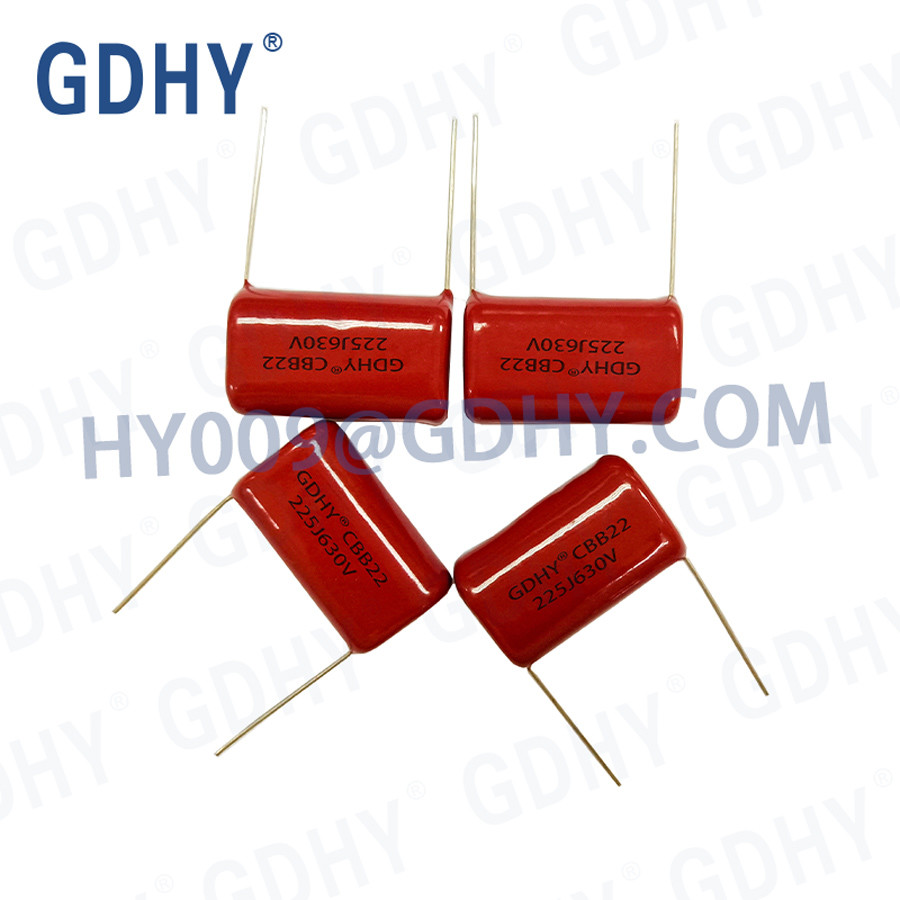

27MM 225nF CBB Polypropylene Film Capacitor 630VDC

Product Categories

Guangdong Huayu Electronic Company Limited

Contact Now

Name: 27MM 225nF CBB Polypropylene Film Capacitor 630VDC
Brand: GDHY
Price: 0.1 USD

Brand Name : GDHY

Model Number : CBB22-225J630V-27RN

Certification : SGS,ISO

Place of Origin : GUANGDONG, CHINA

MOQ : 30KPCS

Price : 0.1 USD/ PCS

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1000 KPCS/ MONTH

Delivery Time : 14 DAYS

Packaging Details : PAPER CARTON

PLACE OF ORIGIN : GUANGDONG, CHINA

TYPE : Film Capacitor

MATERIAL : Polypropylene Film

COLOR : Red

APPLICATION : suitable for high-voltage and high pulse circuits for switching power electronic ballast and other electronic equipment

DIMENSION : 28.5MM *24MM*18MM

TOLERANCE : ±5%;±10%;

SUPPLIER TYPE : ORIGINAL MANUFACTURER

RATED DC VOLTAGE : 630VDC

ENCAPSULATION : flame-retardant epoxy resin coating, radial CP wire.

MODEL : CBB22-225J630V-27RN

CAPACITANCE : 225nF

PITCH : 27MM

Terminals : Clip

OPERATION TEMPERATURE : -40 ℃～85℃, Tmax+105℃

CHARACTERISTICS : Very small dissipation factor at high-frequency and high insulation resistance

OEM/ODM : OEM/ODM

Contact Now

225nF CBB Metallized Polypropylene Film Capacitor 630VDC Hot Sale

Reference Standards	GB/T 10190 (IEC 60384-16)
Climate Category	40/85/21
Operating Temperature Range	-40℃~85℃
Capacity Range	0.01uf-2.2uf
Rated Voltage	100VDC,250VDC,400VDC,630VDC
Capacity Tolerance	±5%(J);±10%(K);±20%(m)
Withstand voltage	Vt-t:1.6Un 5S (at 20±5℃)
Insulation Resistance	R C≥3000s；at 100VDC;25℃ ±5℃,60s

Application

Metallized film in internal series with al foil and non-inductive construction, have self-healing property.
Very small dissipation factor at high-frequency and high insulation resistance

Features

Most suitable for high-voltage and large pulse current and especially large current circuits.
flame-retardant epoxy resin coating, radial CP wire.
Suitable for color TV and monitor for use as capacitor line scanning back stroke, same suitable for high-voltage and high pulse circuits for switching power electronic ballast and other electronic equipment
