Metallized Polyester Film 104J400V 0.1uF CL21 Capacitor

Name: Metallized Polyester Film 104J400V 01uF CL21 Capacitor
Brand: GDHY
Price: 0.06 USD

China Metallized Polyester Film 104J400V 0.1uF CL21 Capacitor wholesale

Brand Name : GDHY

Model Number : CL21 104J400V

Certification : SGS,ISO

Place of Origin : China

MOQ : 100Kpcs

Price : USD0.06/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1KKpcs/Month

Delivery Time : 14days

Capacity : 0.1uF

Voltage : 400V

Size(W*T*H) : 13*5.5*9mm

Pitch : 10mm

Model : CL21 104J400V

Name : CL21 104j400v

Brand : GDHY

Terminal : CP Wire

Capacity Tolerance : ±5% ~ ±10%

Material : Polypropylnen Film

Series : CBB Polypropylene Film Capacitor

Place Of Original : China

Supplier Type : Manufacturer

Lead : 0.6mm

Color : Brown

Encapsulation : Power

Packaging Type : Through Hole

Application : widely used in color TVs, program-controlled switches, computers, telephones, fax machines and instruments, meter circuits for DC pulsation, pulse and low-voltage AC functions.

Contact Now

CL21 104J400V CAPACITOR METALLIZED POLYESTER FILM CAPACITOR

Technical Parameter

Reference Standards	GB/T 7332 (IEC 60384-2)
Climate Category	55/105/21
Operating Temperature Range	-55℃~105℃
Capacity Range	0.01～10μF
Rated Voltage	100V,250V,400V,630V(DC)
Capacity Tolerance	±5%(J)；±10%(K)；±20%(M)
Withstand voltage	1.6UR (5S)
Dissipation Factor	tgδ≤0.01 (20℃, 1KHz)
Insulation Resistance	C≤0.33μF R≥30000MΩ (20℃ 100VDC 1Min) C>0.33μF RCN≥10000S (20℃ 100VDC 1Min)

Application

● DC, VHF signal isolation, bypass and coupling circuits

● Widely used in filtering, noise reduction and low pulse circuits

● Widely used in color TVs, program-controlled switches, computers, telephones, fax machines and instruments, meter circuits for DC pulsation, pulse and low-voltage AC functions.

Features

● Metallized polyester film dielectric

● Non-inductive winding structure

● Epoxy powder coating

● Perfect self healing

● Wide range of capacity and small volume

Datasheet CL21.pdf

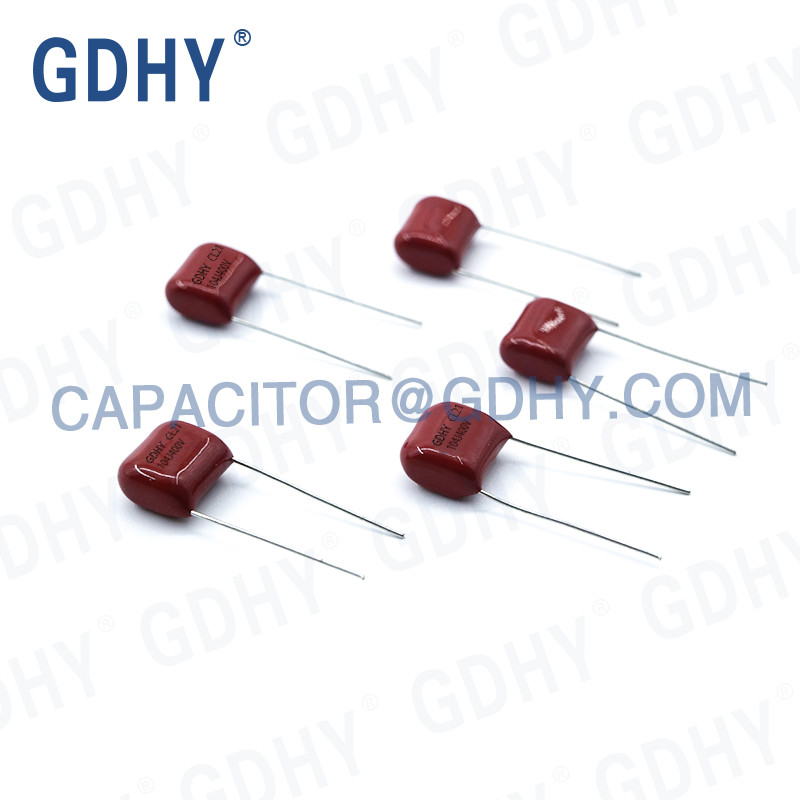

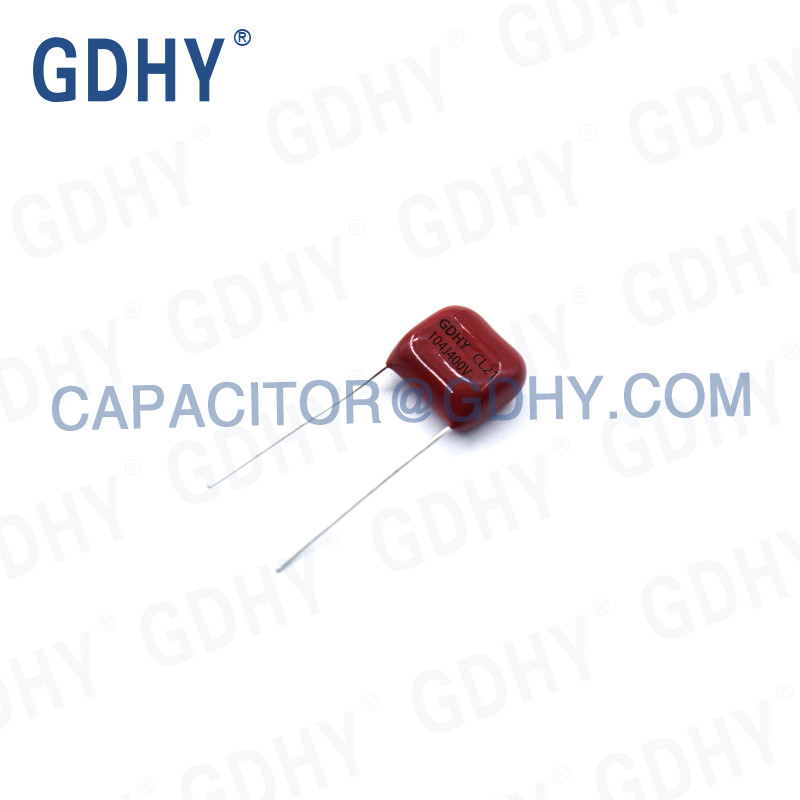

Product Picture
