0.22uf 1200VDC DC Link Coupling Film Capacitor Filter

Product Categories

Guangdong Huayu Electronic Company Limited

Contact Now

Name: 022uf 1200VDC DC Link Coupling Film Capacitor Filter
Brand: GDHY
Price: 1 USD

Brand Name : GDHY

Model Number : C34122224JX10-01

Certification : SGS,ISO

Place of Origin : GUANGZHOU ,CHINA

MOQ : 30KPCS

Price : 1 USD/ PCS

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 1000 KPCS/ MONTH

Delivery Time : 14 DAYS

Packaging Details : Paper CARTON

PLACE OF ORIGIN : GUANGZHOU ,CHINA

SUPPLIER TYPE : ORIGINAL MANUFACTURER

MATERIAL : Metallized Polypropylene Film

CAPACITANCE : 0.22uf

TYPE : polypropylene film capacitor

MODEL : C34122224JX10-01

APPLICATION : Suitable for anti-interference circuit.

RATED DC VOLTAGE : 500VDC-1200VDC

OEM/ODM : OEM/ODM

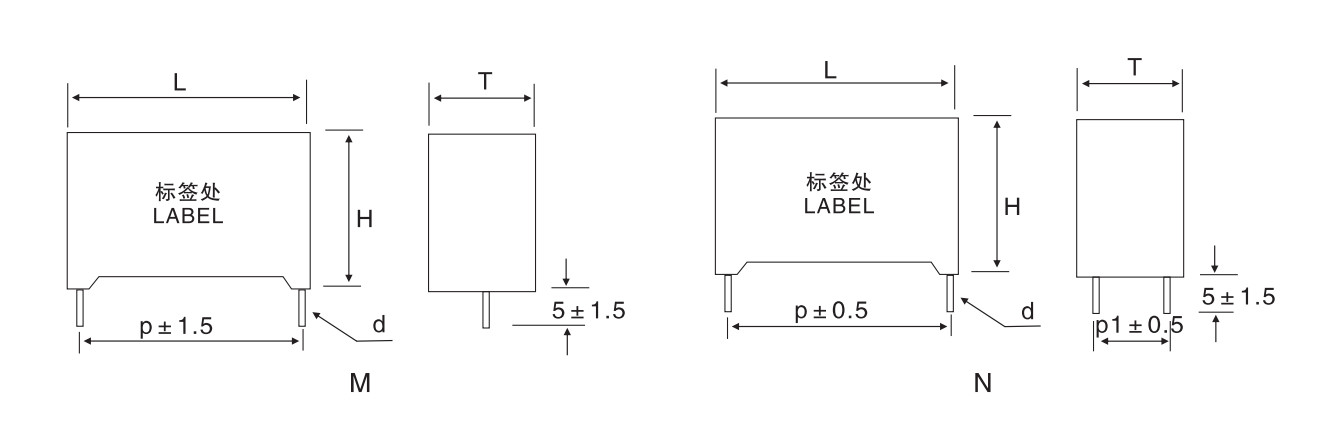

DIMENSION : 30MM*25MM*10MM

OPERATION TEMPERATURE : -40℃～70℃,Tmax +85℃

CHARACTERISTICS : Wide capacitance range,small size and light weight

COLOR : Yellow

ENCAPSULATION : Outer coating Flame retarding epoxy resin

PACKAGE TYPE : Leads Tinned Wire

specification data : DATA SHEET

TOLERANCE : ±5%;±10%

CERTIFICATION : VDE,SGS,CQC

Contact Now

0.22uf 1200VDC DC Link Coupling Film Capacitor Filter Hot Sale

Reference Standards	GB/T 17702 IEC 61071
Operating Temperature Range	-40℃~70℃, Tmax +85℃
Capacity Range	0.0068μF-10uF
Rated Voltage	700VDC-3000VDC
Capacity Tolerance	±5%(J) ;±10%(K)
Withstand voltage	Vt-t:1.5UN(dc) 60S 20℃ Vt-c:1000+2xUn/ 50HZ 60S (min 3000VAC)
Insulation Resistance	RC>3000S;at 100VDC; 25℃±5℃,60s

Application

IGBT Snubber
Widely used in power electronic equipment when the peak voltage,peak current absorption protection

Features

Small size,light weight and low cost
Dissipation factor is small because the leads are directly welded to electrodes
Epoxy resin vacuum-dipped enhances the mechanical strength and humidity resistance
Widely used in DC and pulsating circuits of radio, TV sets and various electronic equipments

Product picture
